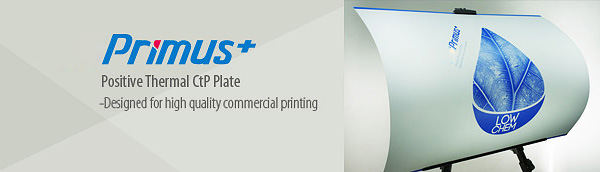

Primus Plus, the upgraded thermal CTP Plates based on the original FIT technology with balanced press performance, resolution, latitude, and productiation.
Your first choice for high quality, long run-length printing requirements!
Product parameters
Type:
Thermal positive CTP Plate
Suitable for:
Commercial, Newspaper and Packaging Printing
Substrate:
High quality grained and anodized aluminum
Maximum width:
1480mm
Spectral sensitivity:
830 nm
Exposure energy:
110-130mj/cm2
Resolution:
1-99%@450 lpi
Run length*:
250,000 unbaked, 1,000,000 impressions when post-baked
*Run length depends on processing and printing quality control and conditions.
UV ink compatibility:
Applicable with UV inks when post-baked
Shelf life:
18 months when stored away from excessive cold, heat and humidity
Storage conditions:
Store plates flat in their packaging, away from excessive cold,
heat or high humidity at 5℃~40℃, with RH between 40~80%
